Product Description

Product Summary:

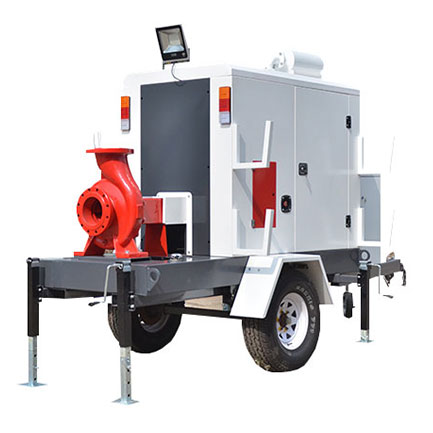

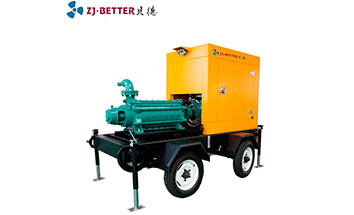

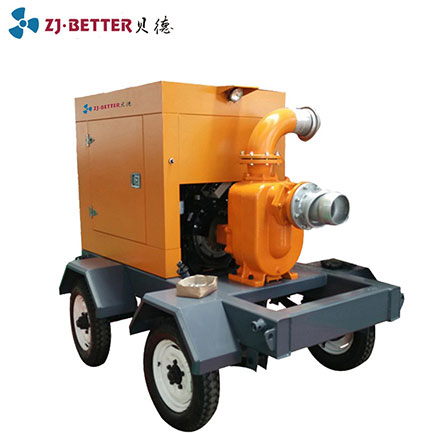

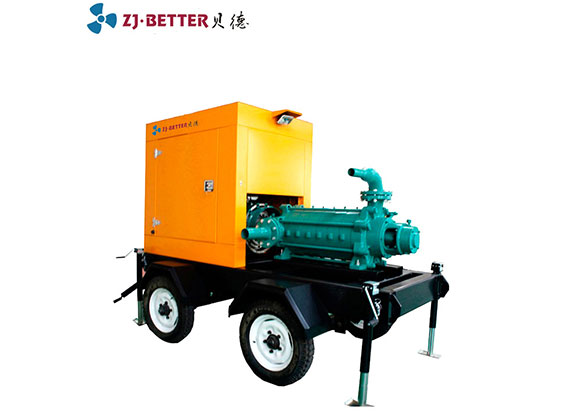

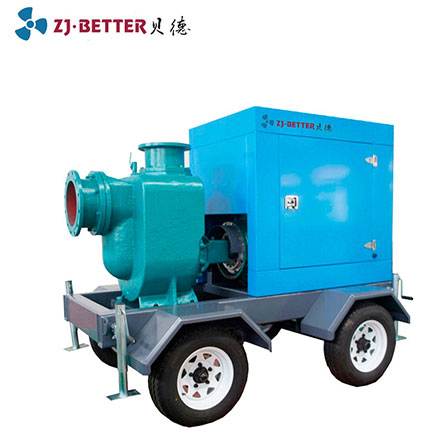

Product name: trailer mounted pump
Model: MPC-ZWC
Specification range: Capacity: 10~800m3/h, head: 8~80m
Structure: Trailer mounted, mobile, fixed type
Engine brand: Weichai, Quanchai, Shangchai, Cummins, Beinei, Deutz, Doosan Infracore ,Hatz Longxin

Working condition:

1)Ambient temperature less than 50℃, medium temperature less than 100℃, suitable for outdoor.
2)Medium PH 6～9 for cast iron，2～14 for stainless steel.
3)medium density less than 1050kg/m3.
4)suction pipe length less than 12m, suction height less than 6m.

Main applicant:

Municipal sewage treatment projects, municipal emergency drainage, flood control and drought relief projects, farmland irrigation projects, etc.General description: MPC-ZWC trailer mounted pump, based on the research of domestic and foreign technology again and again, has been developed and successfully applied to the European and American markets. The trailer mounted pump integrates self-priming and non-blocking sewage discharge. It adopts diesel engine to drive axial reflow and external mixing, and through the unique design of pump body and impeller, it does not need to install bottom valve and water diversion when using. The trailer mounted pump can discharge liquids containing large particles of solids and fiber impurities, and can be widely applied to municipal sewage and flood control projects, agricultural irrigation,etc.The trailer mounted pump has the advantages of convenient movement, rapid use, good self-priming performance, strong sewage discharge capacity, high efficiency and energy saving, etc.

Prouduct Structure

Model meaning:

MPC/2F-100ZWC100-30-Q480
MPC-mobile pump truck
2F:2 wheels
outlet，100mm
capacity, 100m3/h
head, 30m
engine model: Q480

Working Condition

Working condition:

1. MPC-ZWC series trailer mounted pump mainly consist of diesel engine power, diesel engine fuel tank, transmission system, equipment base, self-priming pump assembly, rainproof facilities, starting device, starting power device, inlet pipe assembly, and outlet pipe assembly, two-wheel mobile trailer system, fast lifting device and other components.
2.A liquid storage chamber is arranged in the volute of the self-priming pump, and the medium communicates with the pump working chamber through the pump cavity and the circulation hole in the pump cavity to form a medium axial reflow external mixing system. After the pump stops working, a certain volume of liquid has been stored in the pump chamber due to the action of the check valve.

3.When the pump is started, the medium of the pump chamber is driven by the high-speed rotary gas-liquid mixing of the impeller, and the medium entrained with air is thrown upward by the high-speed tangential line. When it reaches the liquid storage chamber, the sudden volume increases, so that the medium is separated from the air, and the liquid passes through the gas. The liquid separation tube is returned to the working chamber of the pump, and the gas is discharged outside the pump, so that a certain degree of vacuum is formed in the pump to achieve the purpose of strong self-priming. If the vacuum auxiliary device is also provided, a faster, reliable and efficient self-priming function can be realized.

Performance Parameters

Item name	Qty	Note
Diesel engine package	1set	Match the pump
Diesel engine fuel tank	1pc	Better Technology Co.,LTD.
transmission system	1set	Better Technology Co.,LTD.
equipment base flame	1set	Better Technology Co.,LTD.
self-priming pump assembly	1set	Better Technology Co.,LTD.
rainproof facilities(IP65)	1pc	Outdoor type, two-door wing door design.
starting device	1pc	Better Technology Co.,LTD.
starting power device	1pc	Camel Brand
Silent muffler	1pc	Come with
starting device	1pc	Instrument display, key switch, ignition start
Inlet pipe assembly	1set	Better Technology Co.,LTD.
Outlet pipe assembly	1set	Better Technology Co.,LTD.
fast lifting device	1set	Better Technology Co.,LTD.
two-wheel mobile trailer system	1set	SUV vehicle tires, traction systems, steering mechanisms, parking brake systems
Optional parts:
Vacuum assist device
Each inlet (set) of the inlet pipe is equipped with: 1 wire-lined hose, 1 set of Paul quick connector
Each outlet (set) is equipped with: 1 roll of blue water hose and 1 set of Paul quick joint.
1 absorption filter.

Model	Caliber	Capacity	Head	Power
	（mm）	(m3/h)	(m)	(KW)
MPC-ZWC 80-80-35	80	80	35	15
MPC-ZWC 80-40-50	80	40	50	18.5
MPC-ZWC 80-50-60	80	50	60	22
MPC-ZWC 100-100-15	100	100	15	7.5
MPC-ZWC 100-80-20	100	80	20	7.5
MPC-ZWC 100-100-20	100	100	20	11
MPC-ZWC 100-100-30	100	100	30	22
MPC-ZWC 100-80-45	100	80	45	30
MPC-ZWC 100-80-60	100	80	60	37
MPC-ZWC 100-80-80	100	80	80	45
MPC-ZWC 125-120-20	125	120	20	15
MPC-ZWC 150-180-14	150	180	14	15
MPC-ZWC 150-180-20	150	180	20	22
MPC-ZWC 150-180-30	150	180	30	37
MPC-ZWC 150-180-38	150	180	38	55
MPC-ZWC 150-400-25	150	400	25	55
MPC-ZWC 200-280-14	200	280	14	22
MPC-ZWC 200-280-20	200	280	20	37
MPC-ZWC 200-300-8	200	300	8	22
MPC-ZWC 200-280-28	200	280	28	55
MPC-ZWC 200-280-63	200	280	63	90
MPC-ZWC 200-350-65	200	350	65	110
MPC-ZWC 200-400-32	200	400	32	55
MPC-ZWC 250-400-50	250	400	50	90
MPC-ZWC 250-450-55	250	450	55	110
MPC-ZWC 250-550-32	250	550	32	75
MPC-ZWC 250-420-20	250	420	20	45
MPC-ZWC 300-500-50	300	500	50	110
MPC-ZWC 300-500-55	300	500	55	132
MPC-ZWC 300-600-15	300	600	15	55
MPC-ZWC 300-800-16	300	800	16	55
