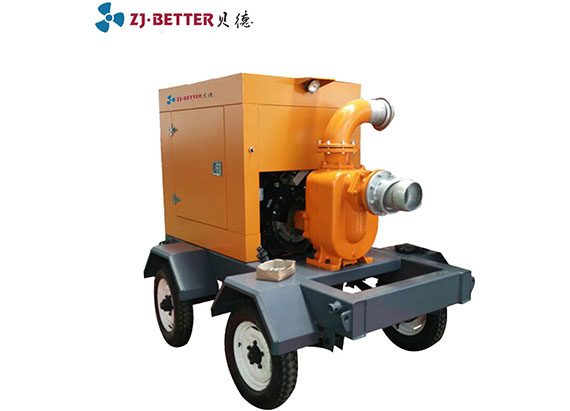

High suction self-priming trailer mounted pump

Model: HMPC-ZWC
Suction height: ≤9 m
Head(BAR): 30
Capacity（m³/h）: 100
Materials: Pig iron, stainless steel

Equipment structure：

main components are vacuum auxiliary device, diesel engine package, diesel engine fuel tank, transmission system, equipment base, self-priming pump assembly, rainproof device, starting device, starting power supply device, water inlet pipe assembly, water

Send Mail Contact Inquiry

Description Structure Structure Parameters Cases

Product Description

Product description:

Product name：High suction self-priming trailer mounted pump
Model：HMPC-ZWC
General description：capacity: 10～800m³/h，head: 8～80m
Suction head：suction head less than 9m
Structure: Trailer mounted, mobile, fixed type
Engine brand: Weichai, Quanchai, Shangchai, Cummins, Beinei, Deutz, Doosan Infracore ,Hatz Longxin, etc.

Working condition:

1)Ambient temperature less than 50℃, medium temperature less than 100℃, suitable for outdoor.
2)Medium PH 6～9 for cast iron，2～14 for stainless steel.
3)medium density less than 1050kg/m3.
4)suction pipe length less than 16m, suction height less than 9m.

Main applicant:

The high suction self-priming trailer mounted pump combines high suction and non-blocking sewage discharge, adopts diesel engine to drive axial recirculation and external mixing, and adopts unique design of pump body and impeller flow passage, and does not need to install bottom valve irrigation water when in use. The high suction self-priming trailer mounted pump can transfer and discharge liquids containing large particles of solids and long fibers, and can be widely used in municipal sewage and flood control projects, agricultural irrigation,etc. The high suction self-priming trailer mounted pump has the advantages of convenient movement, rapid use, excellent self-priming performance, strong sewage discharge capability, high efficiency and energy saving.

Prouduct Structure

Model meaning:

HMPC/2F-100ZWC100-30-Q480/29
H-high suction self-priming
MPC-mobile pump truck
2F -2wheels or 4F-4wheels
ZWC-diesel engine self-priming pump
100-outler，100mm/1
100-capacity，100 m³/h
30-head，30m
Q480/29-diesel engine model，29kW

Working Condition

Working condition:

1. HMPC-ZWC High suction self-priming trailer mounted pump main components are vacuum auxiliary device, diesel engine package, diesel engine fuel tank, transmission system, equipment base, self-priming pump assembly, rainproof device, starting device, starting power supply device, water inlet pipe assembly, water outlet pipe assembly, and two-wheel mobile trailer. System, quick lifting device and other components.
2.We named this self-priming pump product as a high-suction self-priming pump.High suction self-priming trailer mounted pump is based on the self-priming pump, Better Technology Co., Ltd. added a vacuum auxiliary device, which can shorten the self-priming time and enhance the self-priming height, so it is also called vacuum assisted self-priming pump.

3.The high suction self-priming trailer mounted pump can transfer and discharge liquids containing large particles of solids and long fibers, and can be widely used in municipal sewage and flood control projects, agricultural irrigation,etc. The high suction self-priming trailer mounted pump has the advantages of convenient movement, rapid use, excellent self-priming performance, strong sewage discharge capability, high efficiency and energy saving.

Performance Parameters

Item name	Qty	Note
Diesel engine package	1set	Match the pump
Diesel engine fuel tank	1pc	Better Technology Co.,LTD.
transmission system	1set	Better Technology Co.,LTD.
equipment base flame	1set	Better Technology Co.,LTD.
self-priming pump assembly	1set	Better Technology Co.,LTD.
rainproof facilities(IP65)	1pc	Outdoor type, two-door wing door design.
starting device	1pc	Better Technology Co.,LTD.
starting power device	1pc	Camel Brand
Silent muffler	1pc	Come with
starting device	1pc	Instrument display, key switch, ignition start
Inlet pipe assembly	1set	Better Technology Co.,LTD.
Outlet pipe assembly	1set	Better Technology Co.,LTD.
fast lifting device	1set	Better Technology Co.,LTD.
Two (four) wheel mobile trailer system	1set	SUV vehicle tires, traction systems, steering mechanisms, parking brake systems
Optional parts:
Vacuum assist device
Each inlet (set) of the inlet pipe is equipped with: 1 wire-lined hose, 1 set of Paul quick connector
Each outlet (set) is equipped with: 1 roll of blue water hose and 1 set of Paul quick joint.
1 absorption filter.
